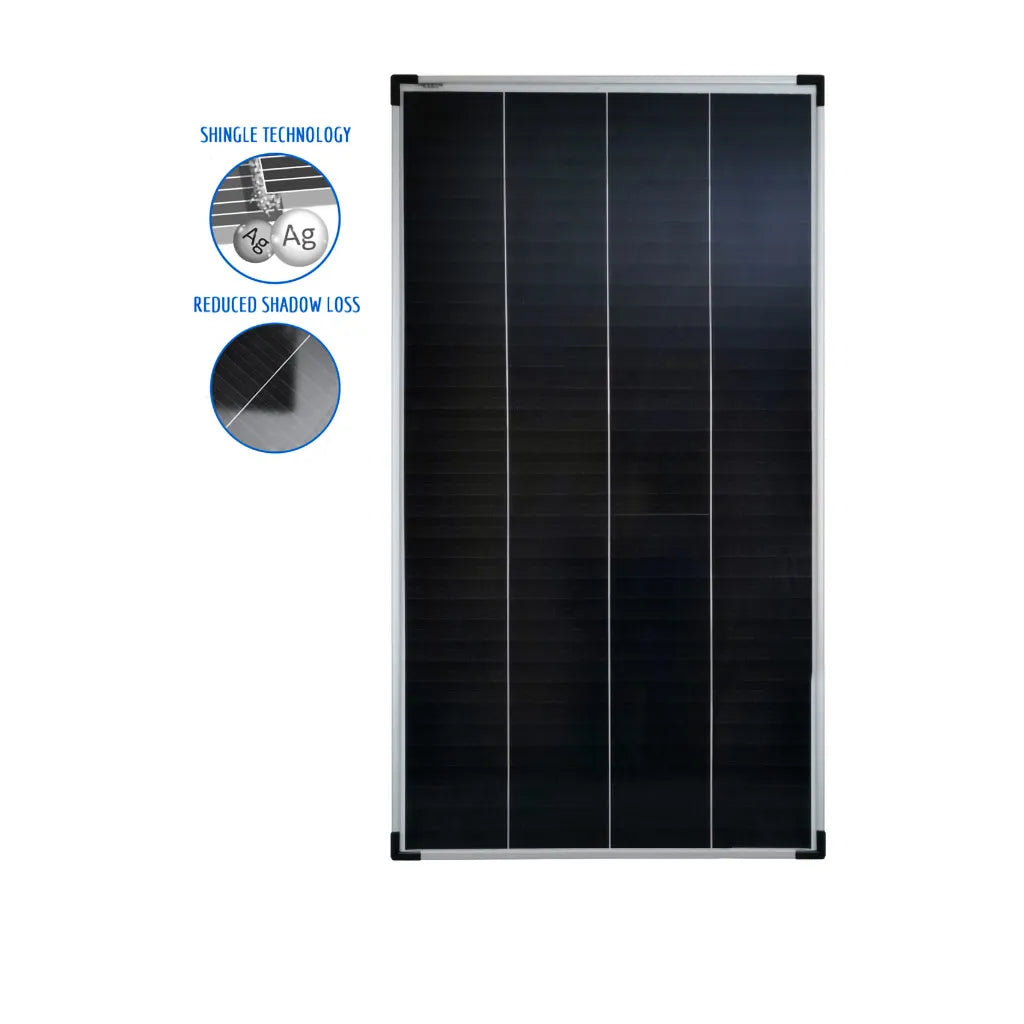

160 Watt Solar PV Panel - Shingled Perc Mono

In stock
SKU: 8012039
Regular price $299.00

Shingled PERC is a new breakthrough in solar cell technology. This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency. This high power, high-density Shingled PERC module are very robust and suited to mobile vehcles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

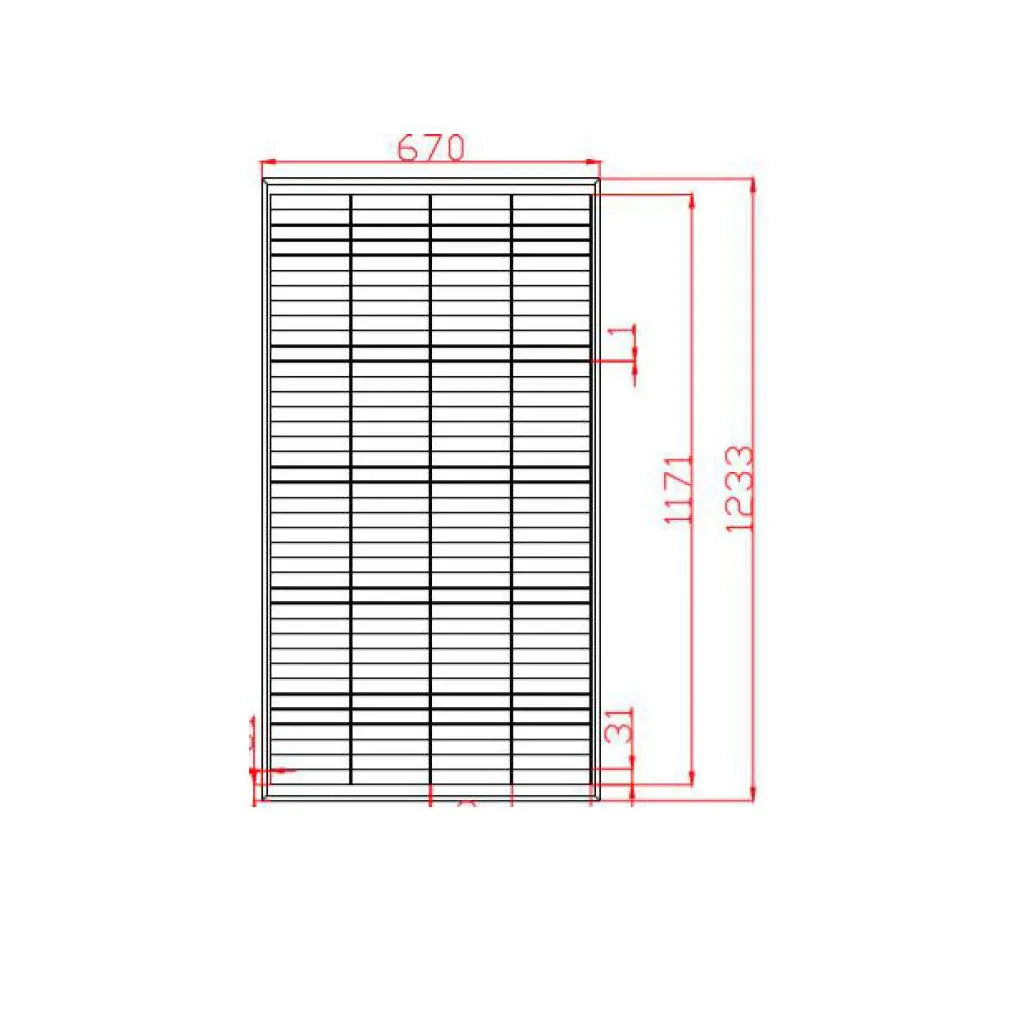

  • W1233 x H35 x D670mm


  • PERC Solar cells with shingle technology

  • Reinforced frame with aluminium angle

  • 35mm Frame with a support surface of 1.2mm thickness


  • More Power Reduced optical and electrical losses. Shadowing also has less effect due to PERC Shingled Cell design.

  • Seamless Soldering Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.

  • Compact High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.

  • Reduced system cost High component efficiency reduces floor space, BOS, transportation and operation costs at production level.

  • Stability Enhanced reliability and stability. Significantly reduces hot spot effect.

  • Reliability Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.

  • Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.


  • Peak Power (Pmax): 160.00W

  • Max Power Voltage (Vmp): 21.49V

  • Max Power Current (Imp): 7.62A

  • Open Circuit Voltage (Voc): 25.3V

  • Short Circuit Current (Isc): 7.62A

  • Module Efficiency: 19.36%

  • Max Systems Voltage (V): 1000V

  • Pmax Temperature Coefficient (W/°C): - 0.41%

  • Voc Temperature Coefficient (V/°C): - 0.31

  • Isc Temperature Coefficient (A/°C): 0.05%

  • Nominal Operating Cell Temp (NOCT): 48±2

  • Operating Temp: -40 to +85C

  • Cell Type: PERC Shingled MONO

  • Cell Quantity: 156 CELL

  • Weight: 10Kg

  • Front Glass: 3.2mm High Transmission, Low Iron, Termpered Glass

  • Surface Load: 5400Pa

  • Junction Box: IP65 Rated

  • Output Cables: MC4, 2.5mm2 900mm
